SCM5B45

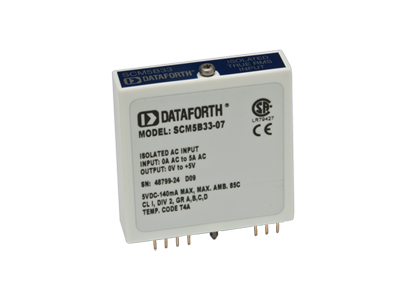

Frequency Input Analog Modular Signal Conditioner

Dataforth

  • Frequency Input Module
  • 1500 V Transformer Isolation
  • Accuracy: ± 0.05%
  • Module
  • ANSI/IEEE C37.90.1 Transient Protection
  • Input Protected to 240 V AC Continuous

Specifications

Family
Dataforth 5B
Input Type
Frequency
# of Inputs
1
Output Type
0 - 5 V DC
0 - 10 V DC
Excitation
5 V DC
Isolation
Yes
Supply Power
5 V DC

Models

SCM5B45-01
± 20 mV Hysteresis, 0-500 Hz Input, 0-5 V Output
SCM5B45-01D
± 20 mV Hysteresis, 0-500 Hz Input, 0-10 V Output
SCM5B45-02
± 20 mV Hysteresis, 0-1 kHz Input, 0-5 V Output
SCM5B45-02D
± 20 mV Hysteresis, 0-1 kHz Input, 0-10 V Output
SCM5B45-03
± 20 mV Hysteresis, 0-3 kHz Input, 0-5 V Output
SCM5B45-03D
± 20 mV Hysteresis, 0-3 kHz Input, 0-10 V Output
SCM5B45-04
± 20 mV Hysteresis, 0-5 kHz Input, 0-5 V Output
SCM5B45-04D
± 20 mV Hysteresis, 0-5 kHz Input, 0-10 V Output
SCM5B45-05
± 20 mV Hysteresis, 0-10 kHz Input, 0-5 V Output
SCM5B45-05D
± 20 mV Hysteresis, 0-10 kHz Input, 0-10 V Output
SCM5B45-06
± 20 mV Hysteresis, 0-25 kHz Input, 0-5 V Output
SCM5B45-06D
± 20 mV Hysteresis, 0-25 kHz Input, 0-10 V Output
SCM5B45-07
± 20 mV Hysteresis, 0-50 kHz Input, 0-5 V Output
SCM5B45-07D
± 20 mV Hysteresis, 0-50 kHz Input, 0-10 V Output
SCM5B45-08
± 20 mV Hysteresis, 0-100 kHz Input, 0-5 V Output
SCM5B45-08D
± 20 mV Hysteresis, 0-100 kHz Input, 0-10 V Output
SCM5B45-21
± 400 mV Hysteresis, 0-500 Hz Input, 0-5 V Output
SCM5B45-21D
± 400 mV Hysteresis, 0-500 Hz Input, 0-10 V Output
SCM5B45-22
± 400 mV Hysteresis, 0-1 kHz Input, 0-5 V Output
SCM5B45-22D
± 400 mV Hysteresis, 0-1 kHz Input, 0-10 V Output
SCM5B45-23
± 400 mV Hysteresis, 0-3 kHz Input, 0-5 V Output
SCM5B45-23D
± 400 mV Hysteresis, 0-3 kHz Input, 0-10 V Output
SCM5B45-24
± 400 mV Hysteresis, 0-5 kHz Input, 0-5 V Output
SCM5B45-24D
± 400 mV Hysteresis, 0-5 kHz Input, 0-10 V Output
SCM5B45-25
± 400 mV Hysteresis, 0-10 kHz Input, 0-5 V Output
SCM5B45-25D
± 400 mV Hysteresis, 0-10 kHz Input, 0-10 V Output
SCM5B45-26
± 400 mV Hysteresis, 0-25 kHz Input, 0-5 V Output
SCM5B45-26D
± 400 mV Hysteresis, 0-25 kHz Input, 0-10 V Output
SCM5B45-27
± 400 mV Hysteresis, 0-50 kHz Input, 0-5 V Output
SCM5B45-27D
± 400 mV Hysteresis, 0-50 kHz Input, 0-10 V Output
SCM5B45-28
± 400 mV Hysteresis, 0-100 kHz Input, 0-5 V Output
SCM5B45-28D
± 400 mV Hysteresis, 0-100 kHz Input, 0-10 V Output
