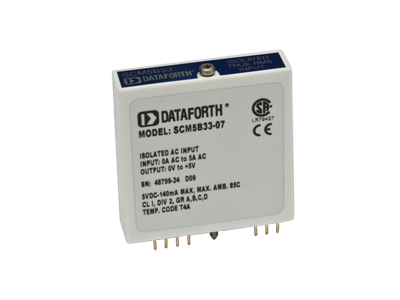

SCM5B41

Analog Input Modular Signal Conditioner

Dataforth

Analog Input Module
1500 V Transformer Isolation
Accuracy: ± 0.03%
Module
ANSI/IEEE C37.90.1 Transient Protection
Input Protected to 240 V AC Continuous

Specifications

Family

Dataforth 5B

Input Type

±1 V DC
±5 V DC
±10 V DC
±20 V DC
±40 V DC

# of Inputs

1

Output Type

0 - 5 V DC
0 - 10 V DC
±5 V DC
±10 V DC

Bandwidth

10 kHz

Isolation

Yes

Supply Power

5 V DC

Models

SCM5B41-01

± 1 V Input, ± 5 V DC Output

SCM5B41-02

± 5 V Input, ± 5 V DC Output

SCM5B41-03

± 10 V Input, ± 5 V DC Output

SCM5B41-04

± 1 V Input, 0-5 V DC Output

SCM5B41-05

± 5 V Input, 0-5 V DC Output

SCM5B41-06

± 10 V Input, 0-5 V DC Output

SCM5B41-07

± 20 V Input, ± 5 V DC Output

SCM5B41-08

± 20 V Input, 0-5 V DC Output

SCM5B41-09

± 40 V Input, ± 5 V DC Output

SCM5B41-10

± 40 V Input, 0-5 V DC Output
