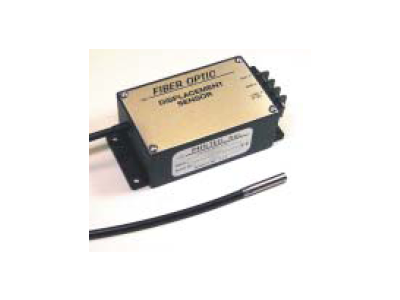

RC190

Analog Output Reflectance Compensated Fiberoptic Displacement Sensor

Philtec

  • Fiberoptic
  • Reflectance Compensated Output
  • 300 Stainless Steel Probe Tip
  • Tip Outer Diameter: 7.925 mm
  • Target Spot Size: 4.83 x 4.75 mm
  • 0.9 m Fiberoptic Cable
  • Available in 100 Hz, 20 kHz or 200 kHz Bandwidth

Specifications

Type
Fiberoptic
Full Scale
25.4 mm [1"]
Output
0 - 5 V DC
Non-Linearity
Non-Linear
Resolution
0.0067 mm
Excitation
12 - 24 V DC
Min Temperature
-55 °C
Max Temperature
175 °C

Models

RC190-DC-100Hz
100 Hz Bandwidth
RC190-DC-20 kHz
20 kHz Bandwidth
RC190-DC-200kHz
200 kHz Bandwidth
