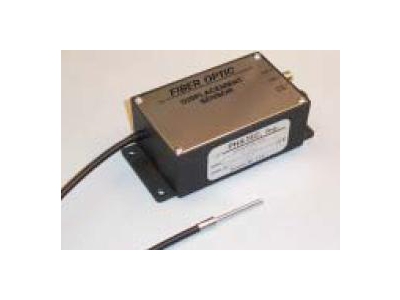

RC100

Analog Output Reflectance Compensated Fiberoptic Displacement Sensor

Philtec

  • Fiberoptic
  • Reflectance Compensated Output
  • 300 Stainless Steel Probe Tip
  • Tip Outer Diameter: 3.18 mm
  • Target Spot Size: 2.5 mm
  • 0.9 m Fiberoptic Cable
  • Available in 100 Hz, 20 kHz or 200 kHz Bandwidth

Specifications

Type
Fiberoptic
Full Scale
2 mm
5.1 mm
Output
0 - 5 V DC
Non-Linearity
Non-Linear
Resolution
0.003 mm
Excitation
12 - 24 V DC
Min Temperature
0 °C
Max Temperature
70 °C

Models

RC100-DC-100Hz
100 Hz Bandwidth
RC100-DC-200kHz
200 kHz Bandwidth
RC100-DC-20kHz
20 kHz Bandwidth
