QDCS

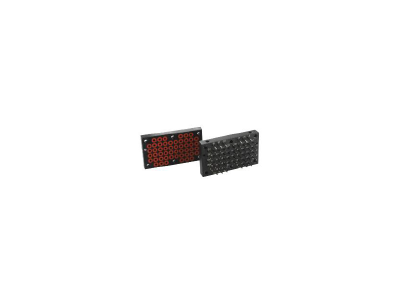

Rectangular Quick Disconnects

TE-Connectivity - Measurement Specialties - PSI

  • Easy connections that can handle pressures up to 750 psi.
  • Compliments our miniature ESP Pressure Scanners
  • Individual Port with Static O-ring Configuration
  • Available with 0.040", 0.063" nominal inner diameter pressure tubing

Details

These quick disconnects can be used with the same diameter tubing on both sides or they can also be used for conversion, that change the tubing diameter on one side to another on the other side.

Halves are available for 0.040" and 0.063" inside diameter pneumatic lines. Available compatible accessories include; nylon tubing, polyurethane tubing, retaining springs and tubing pliers to assist in making all the pneumatic connections.

Models

QDCS-0101010000
20 Port Rectangular Quick Disconnect, 0.040" x 0.350" Tubing on Female Side, 0.040" x 0.350" Tubing on Male Side, with threaded hole mounting
QDCS-0101020000
36 Port Rectangular Quick Disconnect, 0.040" x 0.350" Tubing on Female Side, 0.040" x 0.350" Tubing on Male Side, with threaded hole mounting
QDCS-0101030000
52 Port Rectangular Quick Disconnect, 0.040" x 0.350" Tubing on Female Side, 0.040" x 0.350" Tubing on Male Side, with threaded hole mounting
QDCS-0102010000
20 Port Rectangular Quick Disconnect, 0.040" x 0.350" Tubing on Female Side, 0.063" x 0.350" Tubing on Male Side, with threaded hole mounting
QDCS-0102020000
36 Port Rectangular Quick Disconnect, 0.040" x 0.350" Tubing on Female Side, 0.063" x 0.350" Tubing on Male Side, with threaded hole mounting
QDCS-0102030000
52 Port Rectangular Quick Disconnect, 0.040" x 0.350" Tubing on Female Side, 0.063" x 0.350" Tubing on Male Side, with threaded hole mounting
QDCS-0201010000
20 Port Rectangular Quick Disconnect, 0.063" x 0.350" Tubing on Female Side, 0.040" x 0.350" Tubing on Male Side, with threaded hole mounting
QDCS-0201020000
36 Port Rectangular Quick Disconnect, 0.063" x 0.350" Tubing on Female Side, 0.040" x 0.350" Tubing on Male Side, with threaded hole mounting
QDCS-0201030000
52 Port Rectangular Quick Disconnect, 0.063" x 0.350" Tubing on Female Side, 0.040" x 0.350" Tubing on Male Side, with threaded hole mounting
QDCS-0202010000
20 Port Rectangular Quick Disconnect, 0.063" x 0.350" Tubing on Female Side, 0.063" x 0.350" Tubing on Male Side, with threaded hole mounting
QDCS-0202020000
36 Port Rectangular Quick Disconnect, 0.063" x 0.350" Tubing on Female Side, 0.063" x 0.350" Tubing on Male Side, with threaded hole mounting
QDCS-0202030000
52 Port Rectangular Quick Disconnect, 0.063" x 0.350" Tubing on Female Side, 0.063" x 0.350" Tubing on Male Side, with threaded hole mounting

Downloads

QDCC & QDCS Quick Disconnects
Datasheet
