Q2-400D

Latent Mobile Robot

HIKROBOT

  • Precise navigation with laser SLAM, 2D barcode, and visual SLAM
  • Smooth motion capabilities for flexible movement
  • Smart power management with auto-charging
  • Enhanced safety with obstacle detection and emergency stop
  • User-friendly interface with touch screen and indicators
  • High load capacity up to 400 kg

Details

Equipped with laser SLAM, 2D barcode, and visual SLAM navigation, it ensures precise positioning and smooth movement. This AGV handles loads up to 400 kg with dual-wheel differential drive for stable, flexible operation. Its smart power management enables auto-charging, and advanced safety features, including obstacle detection and emergency stop, provide a secure environment. With wireless connectivity and an intuitive touch screen interface, it’s easy to operate and integrates seamlessly into networked facilities.

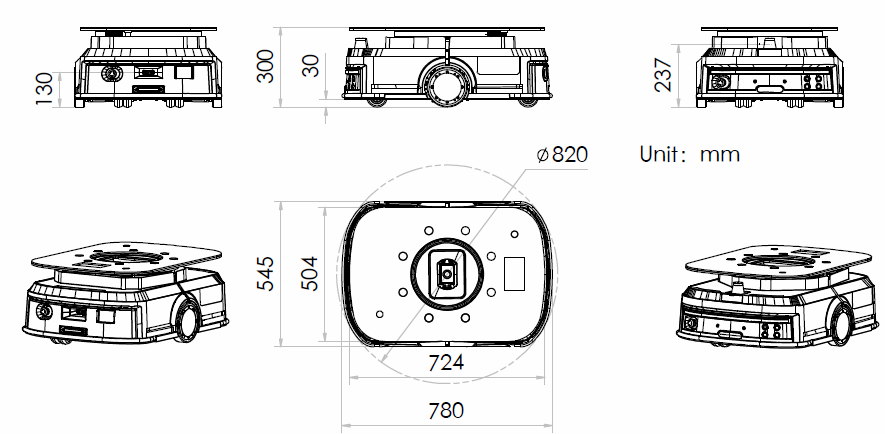

Appearance

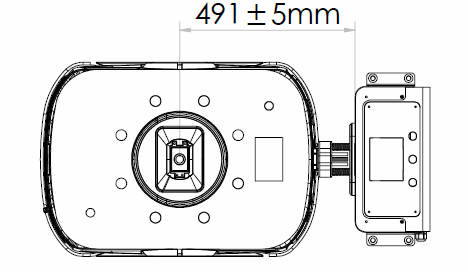

Charge Station Deployment

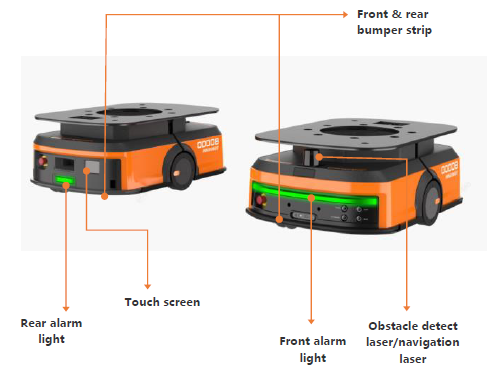

Safety feature



Specifications

Type
Latent Mobile Robot [LMR]
Lifting Height
60 mm
Lifting Type
Electrically lifting
Rated Load
400 kg
Navigation Mode
Laser SLAM
2D barcode
Visual SLAM(ground texture)
Driving Mode
Differential Drive
Charging Time (h)
1.5 h
Run time (h)
8

Models

MR-Q2-400LE-D(HI)
Q2-400D

Downloads

MR-Q2-400LE-D(HI)_datasheet
