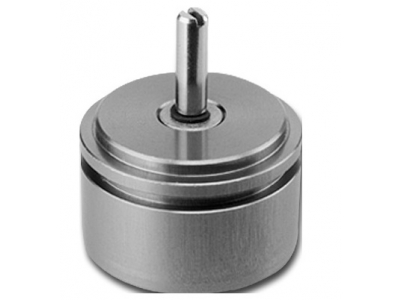

PL310

Rotary Displacement Potentiometer

Novotechnik

  • Very Compact Potentiometer
  • Anodized Aluminum Housing
  • Stainless Steel Shaft
  • 11.15 mm Shaft
  • Connection: 3 Gold-Plated Solder Pins
  • Long Lifetime
  • Special Designs on Request

Specifications

Type
Potentiometer
Full Scale
340°
348°
Max Speed
500 RPM
2000 RPM
Output
Potentiometric
Non-Linearity
±0.25 % FS
±1.00 % FS
Resolution
0.015°
Excitation
0 - 20 V DC
IP Rating
IP50
Min Temperature
-25 °C
Max Temperature
85 °C

Models

PL310-KG
Ball Bearing
PL310-KZS373
Backlash-Free Ball Bearing
PL310-SG
Sinter Bronze Sleeve Bearing

Downloads

PL310 Rotary Displacement Potentiometer
Datasheet
