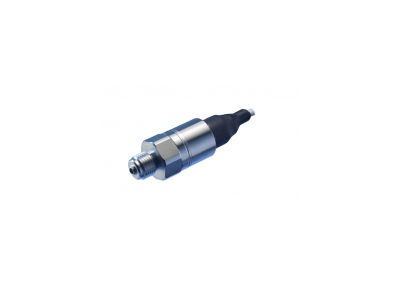

The PGP160 series are designed for high accuracy in absolute or gauge pressure measurements, from -1 up to 600bar. The sensing element is an advanced piezo-resistive pressure module, which together with the latest compensation techniques provides high performance measurements. It is available with low (millivolt) or high level outputs (0.5-4.5Vdc or 0-5Vdc). For transducers, the built-in electronic delivers a dynamic analogue output, signal's bandwidth being specified at a minimum of 1kHz @-3dB, and higher Bandwidths available. With all stainless steel wetted parts, the sensor is compatible with most media used in industry. High accuracy embedded pressure measurements and low sensitivity to Temperature changes, are main focus for the PGP160 series.
