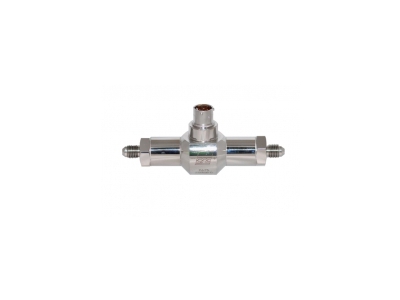

PDM224

Compact Differential Pressure Transducer

EFE Sensors

  • Wet/Wet differential pressure
  • Wetted Parts: Stainless steel
  • Outputs : 0-5Vdc
  • Operating Temperature: 0 to +125°C

Details

The PDM220 series pressure sensors provide accurate differential pressure measurement of gas and liquids in
ranges from 250mbar up to 600bar. Standard unamplified and amplified analog outputs are available : mV/V,
0.5-4.5Vdc, 0-5Vdc and 2-wire 4 to 20mA current loop. They are suitable for uni or bi-directional measurement.

Specifications

Type
Industrial
Operational Mode
Differential
Full Scale
5 psi
10 psi
15 psi
30 psi
45 psi
75 psi
145 psi
290 psi
1450 psi
580 psi
3626 psi
5800 psi
8705 psi
Output
0 - 5V DC
Excitation
15 - 30 V DC

Models

PDM224
Compact Differential Pressure Transducer
