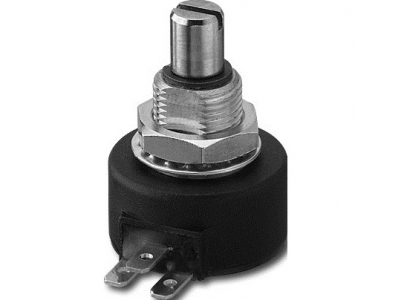

PD210

Single-Turn Rotary Displacement Potentiometer

Novotechnik

  • Compact Wirewound Rotary Potentiometer
  • Temperature-Consistent Plastic Housing
  • Nickel-Plated Brass Shaft
  • 8 mm or 16 mm Shaft
  • Connection: 3 Gold-Plated Pins
  • Very Robust

Specifications

Type
Potentiometer
Full Scale
320°
Max Speed
120 RPM
Output
Potentiometric
Non-Linearity
±0.40 % FS
Resolution
Infinitesimal
Excitation
0 - 42 V DC
IP Rating
IP67
Min Temperature
-55 °C
Max Temperature
125 °C

Models

PD210-10K0-4B080MB
8mm Shaft, 10 kΩ Resistance
PD210-10K0-4B160MB
16mm Shaft, 10 kΩ Resistance
PD210-1K0-4B080MB
8mm Shaft, 1 kΩ Resistance
PD210-1K0-4B160MB
16mm Shaft, 1 kΩ Resistance
PD210-20K0-4B080MB
8mm Shaft, 20 kΩ Resistance
PD210-20K0-4B160MB
16mm Shaft, 20 kΩ Resistance
PD210-2K0-4B080MB
8mm Shaft, 2 kΩ Resistance
PD210-2K0-4B160MB
16mm Shaft, 2 kΩ Resistance
PD210-5K0-4B080MB
8mm Shaft, 5 kΩ Resistance
PD210-5K0-4B160MB
16mm Shaft, 5 kΩ Resistance

Downloads

PD210 Single-Turn Rotary Displacement Potentiometer
Datasheet
