PCM164

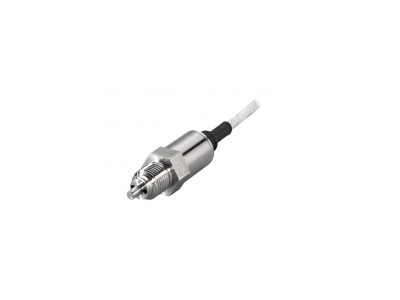

Miniature Pressure and Temperature Sensor

EFE Sensors

  • Pressure Output: 0.5-4.5 Vdc, 6 pin Connector
  • Temperature Output: K-Type Thermocouple, split to Mini Connector
  • Sub miniature and light weight
  • Standard Pressure Ranges from 15 to 7500psi
  • M8x1-6g male Thread

Specifications

Type
Miniature
Operational Mode
Absolute
Sealed Gauge
Full Scale
15 psi
50 psi
100 psi
250 psi
500 psi
1000 psi
3000 psi
5000 psi
7500 psi
Output
5 V DC
Precision
±0.25 % FS
Excitation
10 - 30 V DC
Thread
M8 x 1
Min Temperature
-50 °C
Max Temperature
120 °C

Models

PCM164-14022 Pressure & Temperature Sensor
Miniature Pressure Sensor with K type Thermocouple

Downloads

PCM164-14022 Pressure & Temperature Sensor
Drawings
