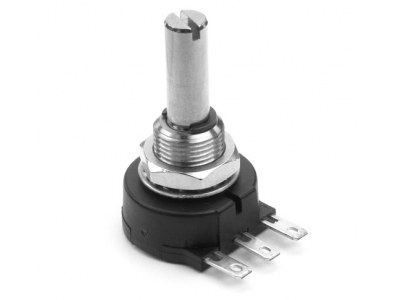

PC262

Single-Turn Rotary Displacement Potentiometer

Novotechnik

Compact Cermet Rotary Potentiometer
Temperature-Consistent Plastic
Nickel-Plated Brass Shaft
16 mm Shaft
Connection: 3 Tin-Plated Solder Pins
Very Robust

Specifications

Type

Potentiometer

Full Scale

272°

Max Speed

120 RPM

Output

Potentiometric

Non-Linearity

±2.00 % FS

Resolution

0.1°

Excitation

0 - 42 V DC

IP Rating

IP50

Min Temperature

-25 °C

Max Temperature

125 °C

Models

PC262

Single-Turn

Downloads

PC262 Sinlge-Turn Rotary Potentiometer
