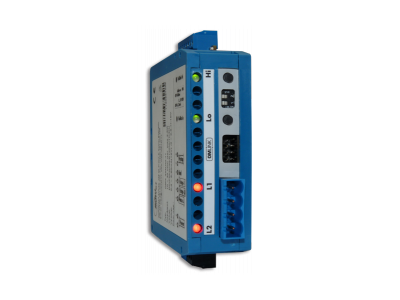

OMX 380DU

Programmable Isolated Transmitter for Linear Potentiometers

Orbit Merret

  • Cost Effective Measurement for Strain Gauge, Potentiometer, Voltage and Current
  • Transmitter for Linear Potentiometers
  • Isolated Versions Available
  • USB Connectivity for easy calibration
  • DAQ Mode with a measuring rate - up to 7500 measurements per second
  • 2 Button teach-in for Potentiometer
  • Teach-in, allows easy setting of both min. and max. of the measuring range

Details

The OMX 380 model range are very fast digital transmitters to DIN rail with and Teach-in function. Modifications available are PM, DU and T. The instrument is based on a single chip microcontroller, 24-bit A/D and 16-bit D/A converter, which ensures good accuracy, stability and easy operation of the instrument. Model OMX 380DU is an extremely fast digital transducer from linear potentiometric input to standardised analogue output.

Specifications

Interface
USB
Input Type
Potentiometer
# of Inputs
1
Output Type
0 - 10 V DC
4 - 20 mA
RS-485
Excitation
2.5 V DC

Models

OMX 380DU
