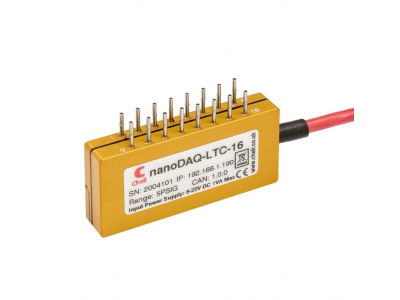

The nanoDAQ-LTC-16 is engineered for precise pressure measurement across 16 channels with the capability to select between absolute or differential outputs. This device offers an accuracy of up to 0.04% full scale and includes 16 absolute transducers that are thermally compensated to provide consistent performance within a temperature range of -20 to 90°C.
The device is contained within an enclosure that is sealed to IP67 standards, ensuring protection against environmental conditions, and measures 50 x 23 x 9 mm, excluding tubulations. It weighs 17 grams, facilitating integration into various applications where size and weight are critical. The nanoDAQ-LTC-16 broadcasts diagnostic information over CAN, including firmware version, serial number, and detected errors, at intervals of 500ms.
Configuration and data output are possible over CAN, with optional Ethernet connectivity via a supplementary daughter board that enables access to an embedded web server for remote monitoring and configuration tasks.
The nanoDAQ-LTC-16 is suitable for applications requiring precise, real-time pressure data monitoring and is capable of operating under a range of environmental conditions due to its robust design.
This description focuses strictly on the technical aspects and specifications of the nanoDAQ-LTC-16, appropriate for detailed product listings or technical documents.

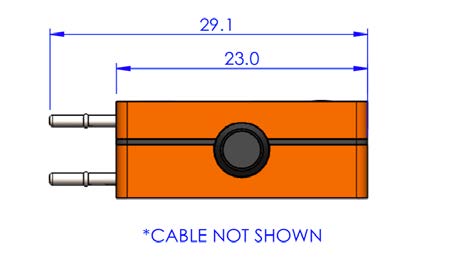

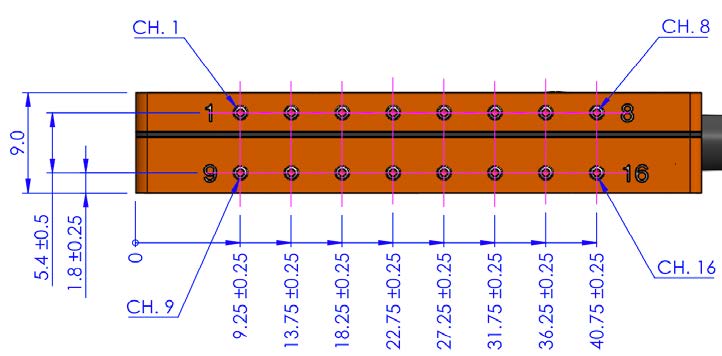

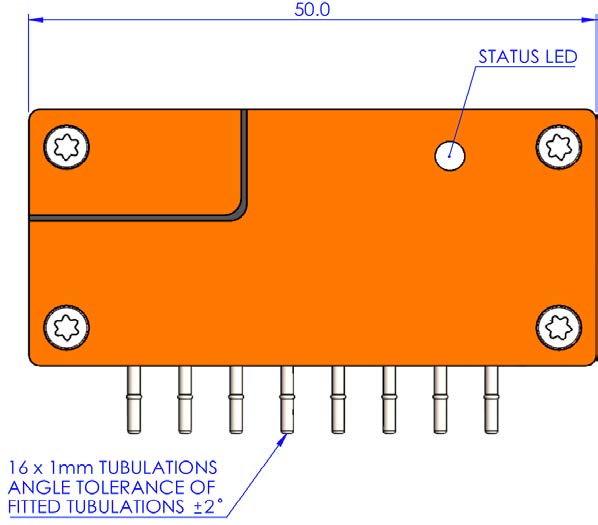

Dimensions
