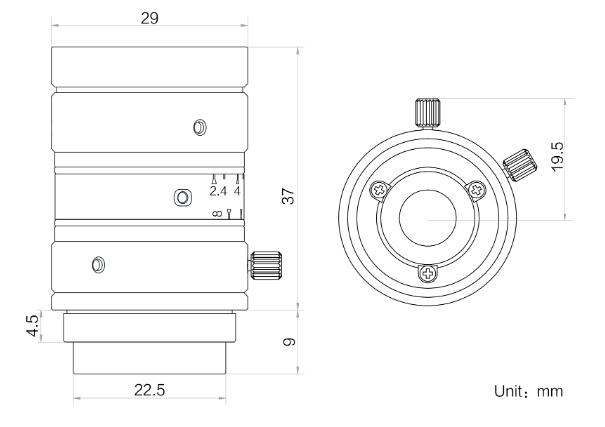

Dimension

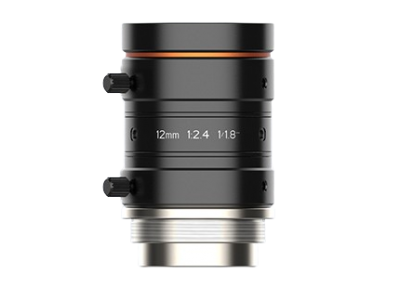

MVL-HF1224M-10MP
10MP FA LENS
HIKROBOT
- Ultra-high resolution and consistent image clarity
- Larger aperture for lower distortion and improved illumination
- Achromatic design for enhanced color camera performance
- Superior vibration resistance with pixel-level optical axis stability
- Reliable stability across high and low temperatures
- Multilayer, broadband coating for visible and near-infrared compatibility
Details
Specifications
Focal length
12 mm
Image size
9 mm(1/1.8’’)
Filter Thread
M27 × 0.5
Distortion
0.15%
Minimum Operation Distance
0.1 m
Focus Control
Manual
Mount
C-Mount
Min Temperature
-10°C
Max Temperature
50°C
Models
MVL-HF1224M-10MP
12mm 10MP FA LENS
Downloads
MVL-HF1224M-10MP
