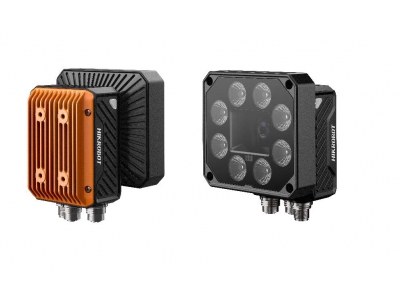

MV-SC6016M

1.6 MP Smart Camera

HIKROBOT

  • AI deep learning algorithms
  • Supports over 140 algorithms
  • Multiple interfaces for external devices
  • Four-color light source (red/green/blue/white)
  • IP67 protection
  • CMOS sensor with global shutter
  • M12 lens mount

Specifications

Software Platform
Vision Master
Series
SC6000
Resolution
1.6 MP
Existence Tools
Pattern Existence
Spot Existence
Edge Existence
Circle Existence
Line Existence
Contour Existence
Counting Tools
Pattern Count
Spot Count
Edge Count
Contour Count
Measurement Tools
Brightness Analysis
Contrast Measurement
Greyscale Size
Diameter Measurement
Width Measurement
Line Angle
Line to Line Angle
Point to Line
Edge Width Measurement
Brightness Average Value
Distance Detection
Recognition Tools
OCR
Barcode
Code Recognition
DL Object Detection
DL Classification
Mono/Color
Mono
Memory
8 GB
Storage
64 GB
Power Supply
24 VDC

Models

MV-SC6016M-06M-XBN
6 mm focal length smart camera
MV-SC6016M-12M-XBN
12 mm focal length smart camera
MV-SC6016M-16M-XBN
16 mm focal length smart camera

Downloads

MV-SC6016M Smart Camera
Datasheet
