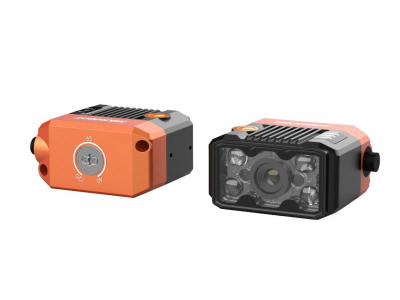

MV-SC2004EM Mini, 0.4 MP

Miniature Vision Sensor

HIKROBOT

Adopts embedded hardware platform for high-speed image processing.
Adopts built-in positioning and measurement algorithms to detect object’s existence, count patterns and spots, etc.
Multiple IO interfaces for input and output signals.
Multiple indicators for displaying device status.
Adopts light source to ensure uniform brightness in the illuminated area.
Supports multiple communication protocols, including Serial Port, TCP, UDP, FTP, Profinet, Modbus, Ethernet/IP, etc.

Details

With built-in positioning and measurement algorithms, the MVSC2004EM- 06S-WBN-Mini vision sensor can detect object’s existence, count patterns and spots, etc. It can be monitored and operated via the SCMVS client. It can output results via
RS-232 and Ethernet, and cooperate with other processes via IO. The vision sensor supports multiple result output methods and customized result text output.

Specifications

Series

SC2000

Resolution

0.4 MP

Existence Tools

Pattern Existence
Spot Existence

Counting Tools

Pattern Count
Spot Count

Measurement Tools

Contrast Measurement
Brightness Average Value

Models

MV-SC2004EM-06S-WBN-Mini

0.4 MP 1/2.9" Vision S

Accessories

Lens Cap

Transparent lens cap
