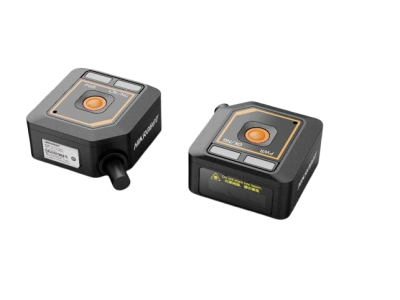

MV-SC1008M

0.8 MP Vision Sensor

HIKROBOT

Compact design for easy integration into machines and space-constrained environments.
Embedded hardware platform for real-time, high-speed image processing.
Advanced algorithms for accurate detection of object existence, quantity, and location.
Integrated cross laser for precise field-of-view alignment and targeting.
Multiple status indicators for continuous device status monitoring.
Supports a wide range of communication protocols, including Modbus, EtherNet/IP, Profinet, FTP, UDP, TCP, and Serial Port.

Details

The MV-SC1008M Vision Sensor is a compact and versatile device featuring a 0.8 MP CMOS sensor with a global shutter for high-speed image processing. Designed for easy integration into small machines and workstations, it offers advanced positioning, measurement, and inspection capabilities, suitable for a wide range of industries including consumer electronics, food, medical, and automotive sectors. The sensor is operated and monitored via SCMVS software and supports multiple communication protocols, ensuring seamless compatibility and control.

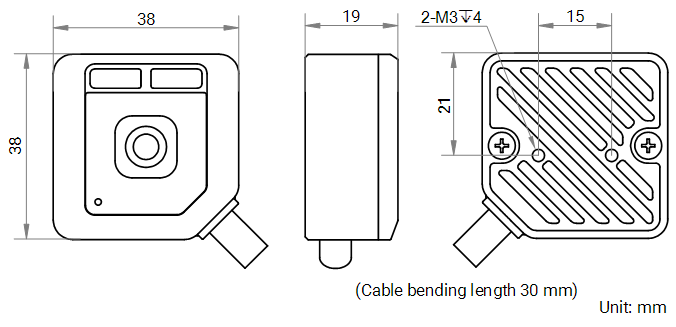

Dimension

Specifications

Software Platform

SCMVS

Series

SC1000

Resolution

0.8 MP

Existence Tools

Spot Existence
Edge Existence
Circle Existence
Line Existence
Contour Existence

Counting Tools

Pattern Count
Spot Count
Edge Count

Measurement Tools

Brightness Analysis
Contrast Measurement
Greyscale Size
Diameter Measurement
Width Measurement
Line Angle
Line to Line Angle
Point to Line
Edge Width Measurement

Recognition Tools

DL Classification

Mono/Color

Mono

Communication

Ethernet/IP
Profinet
Modbus
FTP
Digital I/O
Serial Port
TCP Client/Server
UDP Server

Location

Position Fixture

Power Supply

12 VDC
24 VDC

Models

MV-SC1008M-05S-WBN-NR

Working distance: 120 mm

MV-SC1008M-05S-WBN-SR

Working distance: 240 mm
