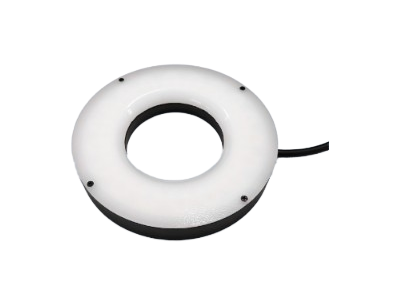

MV-LRDS-H-105-45-R2

Standard Ring Light

HIKROBOT

  • Adopts high-density LED array design.
  • Provides models with various outer dimensions and irradiation angles.
  • Adopts compact structure with good heat dissipation design.
  • Provides diffuse plate to improve lighting uniformity.

Details

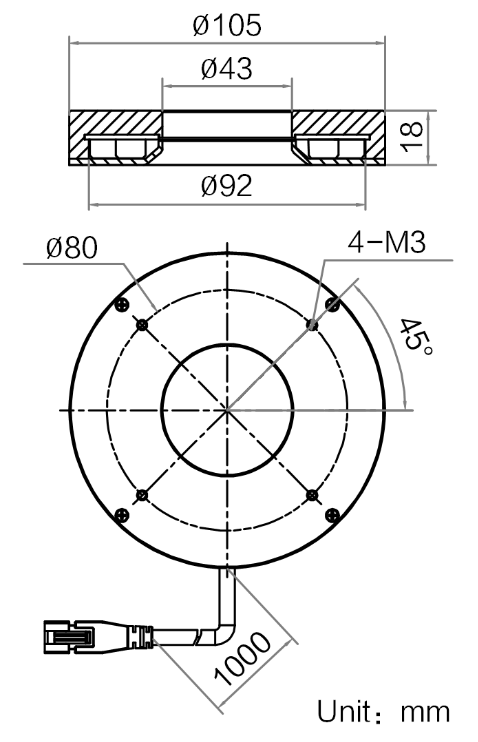

Dimension

Specifications

Type
Ring Lighting
Color
Red
LED Rows
2
Power Consumption
11.9 W
Min Temperature
0 °C
MaxTemperature
40 °C
Connector type
SMR-03V-B

Models

MV-LRDS-H-105-45-R2
Outer Dimension:105mm -- Power consumption: 11.9 W

Downloads

MV-LRDS-H-80-90-R2
Datasheet
