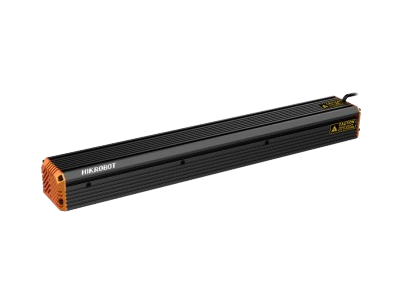

MV-LLDS-H-100-30-B

Standard Bar Light

HIKROBOT

  • The irradiation direction and angle can be adjusted freely.
  • Support multi-side installation.
  • High-quality LED particles, stable lighting and high brightness.

Details

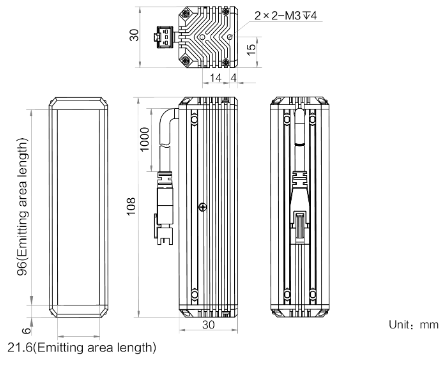

Dimension

Specifications

Type
Bar Lighting
Color
Blue
LED Rows
4
Power Consumption
5 W
Min Temperature
0 °C
MaxTemperature
40 °C
Connector type
SMR-03V-B

Models

MV-LLDS-H-100-30-B
Outer dimensions:108mm -- Power consumption: 5W

Downloads

MV-LLDS-H-450-30-W
Datasheet
