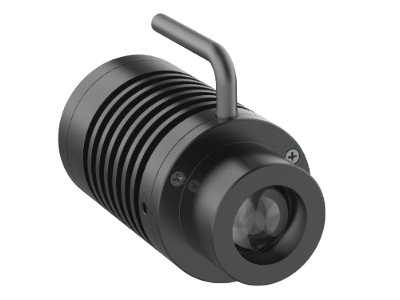

MV-LDFM-H-20-10-W

High Brightness Dot-Type Lighting

HIKROBOT

  • Round direct light source, uniform illumination in the center illuminated area.
  • High-brightness spotlight design, surface illuminance (center) >2 million Lux.
  • Compact size to fit in very narrow installation spaces.

Details

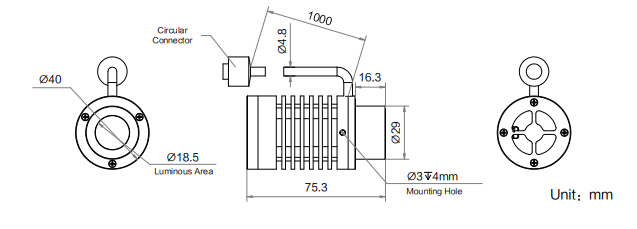

Dimension

Specifications

Color
White
Power Consumption
9 W
Min Temperature
0 °C
MaxTemperature
40 °C
Connector type
12M-5A

Models

MV-LDFM-H-20-10-W
Dimension:75.3mm -- Power consumption: 9W

Downloads

MV-LDFM-H-20-10-W
Datasheet
