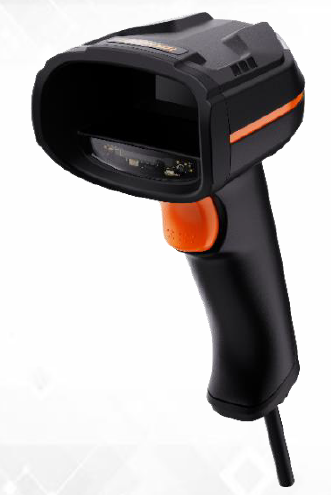

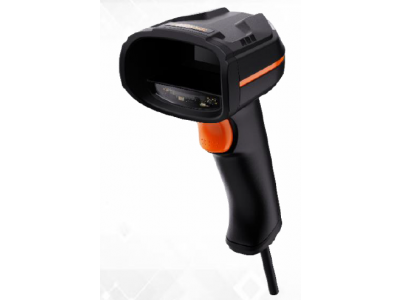

MV-IDH3013, 1.3 MP Wired Handheld

Smart Code Reader

HIKROBOT

Adopts code reading algorithm to read different types of one-dimensional and two dimensional codes.
Provides good robustness to read codes with spots, defects and low contrast radio.
Supports continuous code reading, batch code reading for improving code reading efficiency.
Supports multiple communication protocols, including TCP, Serial, FTP, UDP, USB HID, etc.
Easy to replace components

Details

MV-IDH3013 wired handheld code reader adopts code reading algorithm and can read different types of one dimensional
and two-dimensional codes, and output results rapidly. It has good decoding capability for codes with spots, defects and low contrast radio, and entry level DPM code.

Specifications

Type

Hand Held

Resolution

1.3 MP

Power Supply

12 VDC
24 VDC
USB: 5 VDC

Data Interface

DC terminal
Fast Ethernet
RS-232
USB2.0

Communication

FTP
Serial
SmartSDK
TCP Client/Server
UDP
USB (HID/CDC)

1-Dimensional Code

Code 39
Code 93
Code 128
CodaBar
EAN 8
EAN 13
ITF 14
Matrix 25
UPCA
UPCE

2-Dimensional Code

Data Matrix
QR Code

Models

MV-IDH3013-05N-R1L

Fast Ethernet with near distance

MV-IDH3013-05N-R1U

USB interface with near distance

MV-IDH3013-05S-R1L

Fast Ethernet with standard distance

MV-IDH3013-05S-R1U

USB interface with standard distance

Downloads

MV-IDH3013 Datasheet

Datasheet

MV-IDH3013, Drawings

Drawings
