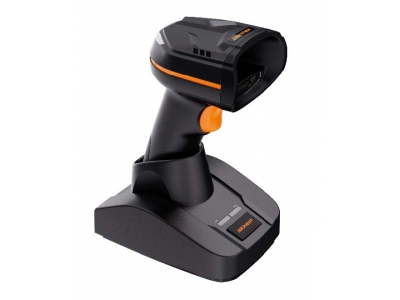

MV-IDH3000B, 1.3MP

Wireless Handheld Code Reader

HIKROBOT

  • Decodes 1D, 2D, and stacked codes, including low-contrast and defective codes
  • Bluetooth 5.0 technology with an 80 m wireless range
  • Built-in intelligent code-reading algorithm for enhanced robustness
  • Smart base for charging and data communication
  • Durable design with a 1.5 m drop height and IP42 protection
  • Client software (IDMVS) for device management and parameter configuration

Details

The MV-IDH3000B wireless handheld code reader is engineered for high-efficiency industrial applications, providing robust decoding of 1D and 2D codes, including QR codes, Data Matrix, and PDF417. Its intelligent algorithm ensures accurate readings even on damaged or low-contrast codes. Equipped with Bluetooth 5.0, it offers a reliable wireless range of up to 80 m, enabling flexible operations. The smart base facilitates both charging and data transfer via Ethernet or USB. With a rugged design capable of withstanding drops from 1.5 m and IP42 ingress protection, the MV-IDH3000B ensures dependable performance in demanding environments.

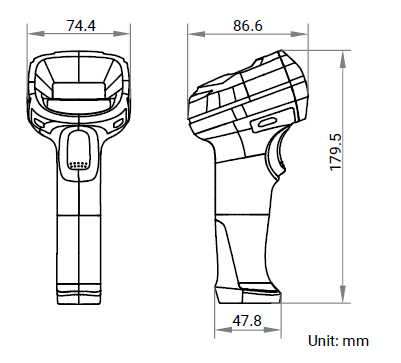

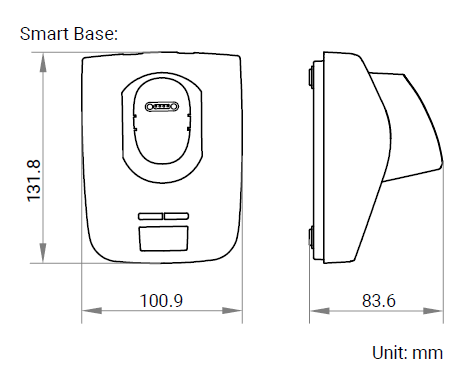

Dimension

Specifications

Type
Hand Held
Resolution
1.3 MP
Power Supply
12 VDC
24 VDC
Battery: 3.8 VDC
USB: 5 VDC
Data Interface
DC terminal
Fast Ethernet
RS-232
Communication
Bluetooth 5.0, 2.4 GHz
FTP
Serial
SmartSDK
TCP Client/Server
UDP
1-Dimensional Code
Code 39
Code 93
Code 128
CodaBar
EAN 8
EAN 13
ITF 14
ITF 25
UPCA
UPCE
2-Dimensional Code
Aztec Code
Data Matrix
Micro QR Code
QR Code
Ingress protection
IP42
Certification
CE
KC

Models

MV-IDH3000B/13NR/05RN/LS
MV-IDH3000B/13NR/05RN/US
MV-IDH3000B/13SR/05RN/LS
MV-IDH3000B/13SR/05RN/US
MV-IDH3000B/13SR/05WP/LS/PM
MV-IDH3000B/13SR/05WP/US/PM

Downloads

MV-IDH3000B Wireless Handheld Code Reader
