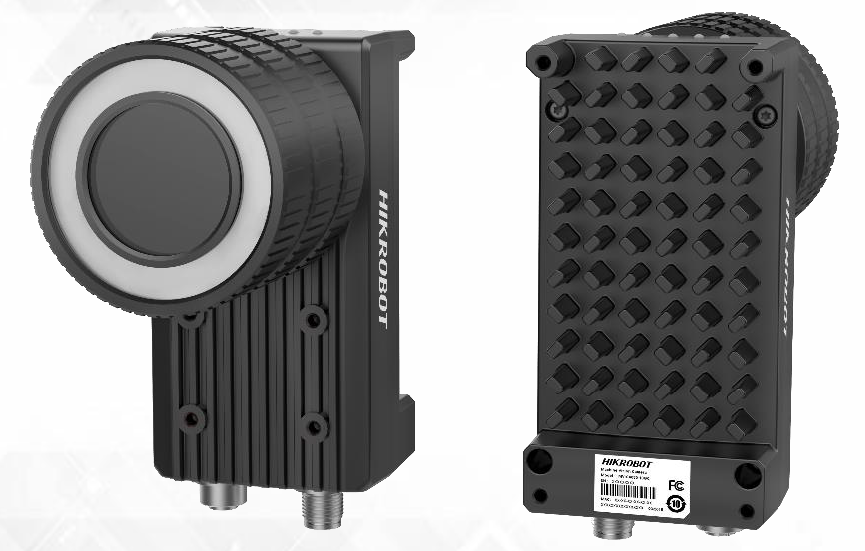

With built-in code reading algorithm, MV-ID6089M-00CNNG smart code reader can read different types of 1-dimensional code and 2-dimensional code with reading speed up to 90 codes/sec. It adopts deep learning algorithm to process image with good robustness, and can recognize various poor printing quality codes.
MV-ID6089M-00C-NNG, 8.9 MP
Smart Code Reader
HIKROBOT
- Adopts built-in code reading algorithm and deep learning algorithm with good robustness to read different codes.
- Adopts CMOS sensor to acquire image data and provide high-quality image.
- Supports various trigger modes and image acquisition modes.
- Adopts multiple IO interfaces for inputting and outputting signals.
- Supports RS-232 serial port and indicators displaying device status.
Details
Specifications
Resolution
8.9 MP
Power Supply
12 VDC
24 VDC
24 VDC
Max Reading Speed
90 codes/sec
Data Interface
Gigabit Ethernet
Communication
FTP
Serial
SmartSDK
TCP Client/Server
Serial
SmartSDK
TCP Client/Server
1-Dimensional Code
Code 39
Code 93
Code 128
CodaBar
EAN 8
EAN 13
ITF 14
ITF 25
UPCA
UPCE
Code 93
Code 128
CodaBar
EAN 8
EAN 13
ITF 14
ITF 25
UPCA
UPCE
2-Dimensional Code
Data Matrix
QR Code
QR Code
Certification
CE
FCC
RoHS
FCC
RoHS
Models
MV-ID6089M-00C-NNG
8.9 MP 1" CMOS Smart Code Reader
Accessories
Lens
KF series FA lens
Light Source
MV-LB-270-140-4030WL-A
