The MV-ID5050M smart code reader can read different types of codes with reading speed up to 90 codes/sec. It adopts Hikrobot’s deep learning algorithm to process images with good robustness, and can recognize various complex codes.

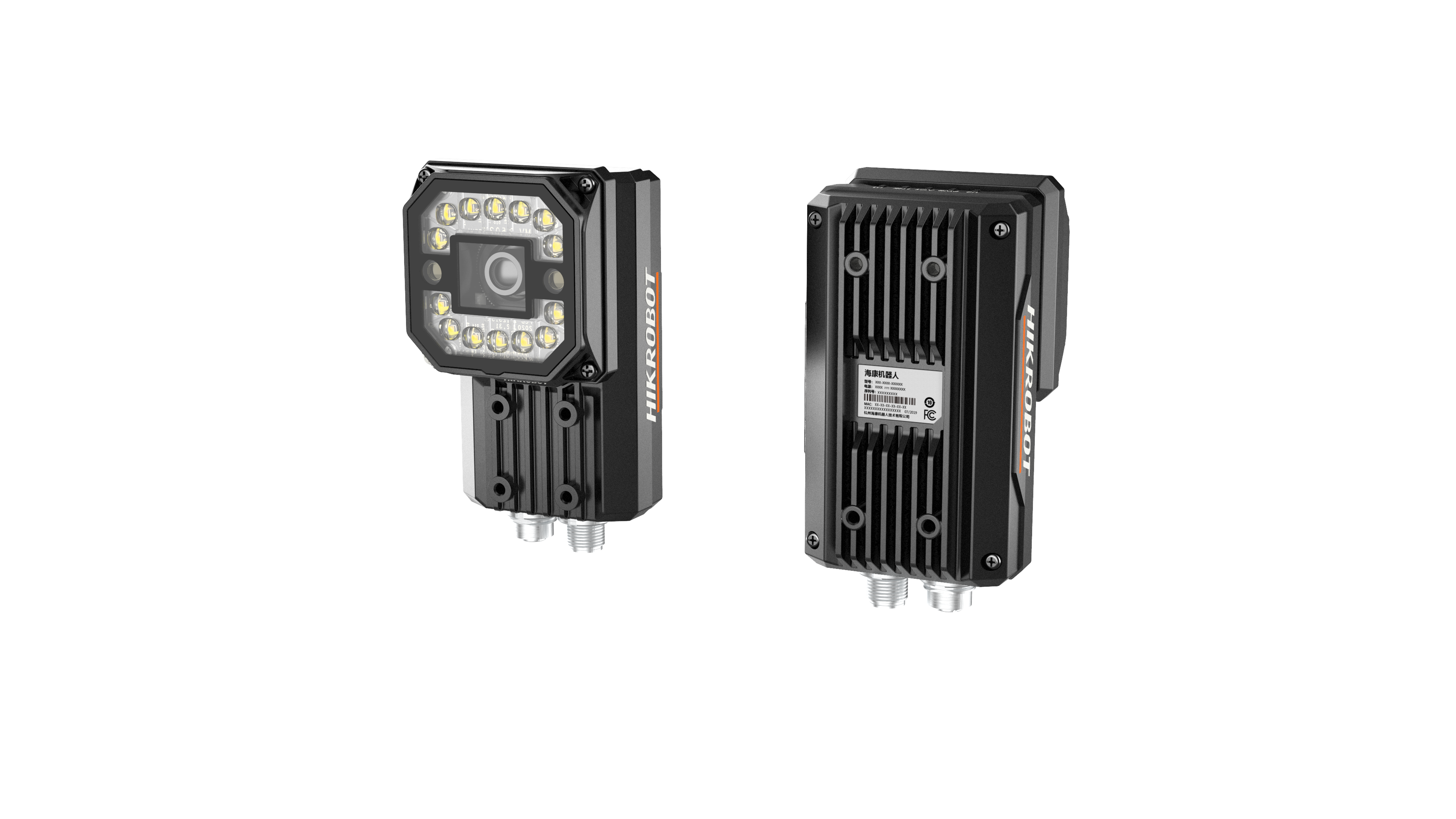

MV-ID5050M, 4.2 MP
Smart Code Reader
HIKROBOT
- Adopts built-in deep learning algorithm to read codes with good robustness.
- Adopts CMOS global shutter sensor to provide high quality images.
- Adopts mechanical autofocus lens to achieve automatic focusing.
- Supports code score and quality evaluation for code printing quality.
- Adopts controllable light source design providing diversified light.
- Ingress protection rating 67.
Details
Specifications
Type
Industrial
Resolution
4.2 MP
Power Supply
24 VDC
Max Reading Speed
90 codes/sec
Data Interface
Gigabit Ethernet
Communication
Ethernet/IP
FTP
Fins
MELSEC
ModBus
Profinet
Serial
SmartSDK
SLMP
TCP Client/Server
FTP
Fins
MELSEC
ModBus
Profinet
Serial
SmartSDK
SLMP
TCP Client/Server
1-Dimensional Code
Code 11
Code 39
Code 93
Code 128
CodaBar
EAN 8
EAN 13
ITF 14
ITF 25
Matrix 25
MSI
UPCA
UPCE
Code 39
Code 93
Code 128
CodaBar
EAN 8
EAN 13
ITF 14
ITF 25
Matrix 25
MSI
UPCA
UPCE
2-Dimensional Code
Data Matrix
QR Code
QR Code
Certification
CE
FCC
RoHS
FCC
RoHS
Models
MV-ID5050M-08S-WBN
8 mm focal length
MV-ID5050M-12S-WBN
12 mm focal length
MV-ID5050M-16S-WBN
16 mm focal length
MV-ID5050M-25S-WBN
25 mm focal length
Accessories
Lens Cap
Transparent lens cap
Lens Cap
Polarization lens cap
Lens cap
Half Polarization, default
