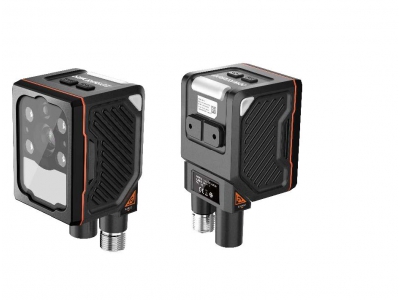

The MV-ID3050XM industrial code reader reads different types of 1D and 2D codes at speeds up to 90 codes per second. It uses Hikrobot’s deep learning algorithm to process images, ensuring accurate code recognition. The CMOS sensor captures images with high quality.
The device supports focal lengths of 8 mm, 12 mm, 16 mm, and 25 mm, suitable for various working distances and fields of view. It has multiple indicators displaying device status from different sides and supports one-key auto adjustment for easy operation. The light source system is modular and easy to replace.
The MV-ID3050XM has IO interfaces for input and output signals, including a 12-pin M12 connector for power and I/O and RS-232 communication. It supports communication protocols such as SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, Fins, and UDP.
The device has an IP67 protection class and operates in temperatures from 0°C to 50°C, with storage temperatures between -30°C and 70°C. It meets CE, RoHS, and KC certification standards.

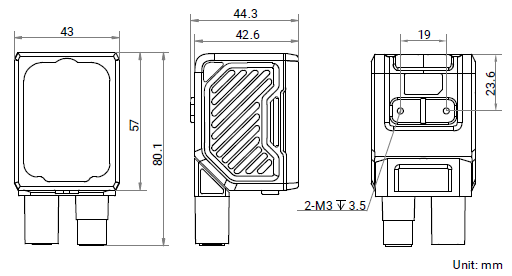

Dimensions
Device (Straight Angle):
