The MV-ID3016M smart code reader adopts Hikrobot’s deep learning algorithm and can recognize and read different types of barcodes. It has good robustness and its max. frame rate reaches 20 fps.

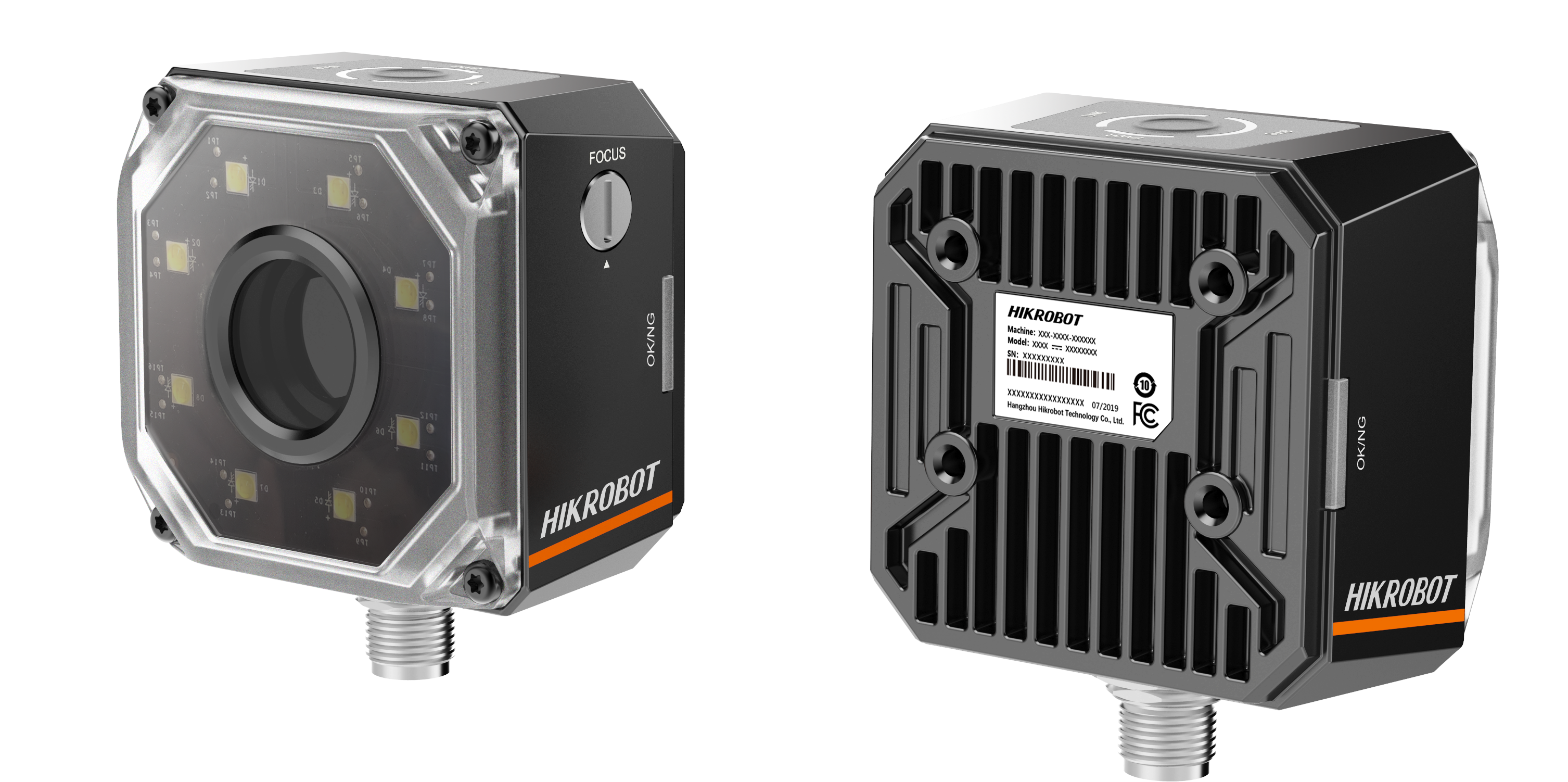

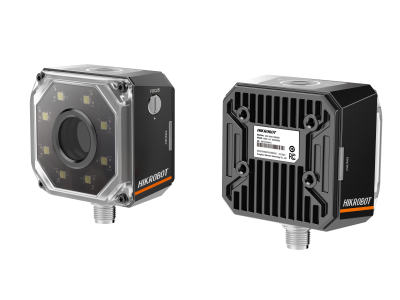

MV-ID3016M, 1.6 MP
Smart Code Reader
HIKROBOT
- Adopts CMOS sensor to acquire image data and provide high-quality image.
- Adopts built-in deep learning algorithm to read barcodes.
- Adopts multiple IO interfaces for input and output signals.
- Adopts OK/NG, PWR, STS and LNK indicators for displaying different statuses.
- Supports multiple communication protocols, including TCP, Serial, FTP, Profinet, etc.
Details
Specifications
Type
Industrial
Resolution
1.6 MP
Power Supply
12 VDC
24 VDC
24 VDC
Max Reading Speed
60 codes/sec
Data Interface
Fast Ethernet
Communication
FTP
Profinet
Serial
SmartSDK
TCP Client/Server
Profinet
Serial
SmartSDK
TCP Client/Server
1-Dimensional Code
Code 39
Code 128
Code 128
2-Dimensional Code
Data Matrix
QR Code
QR Code
Models
MV-ID3016M-06S-WBN
6 mm focal length
MV-ID3016M-12S-WBN
12.4 mm focal length
MV-ID3016M-15S-WBN
14.8 mm focal length
Accessories
Polarization lens cap
Transparent lens cap
