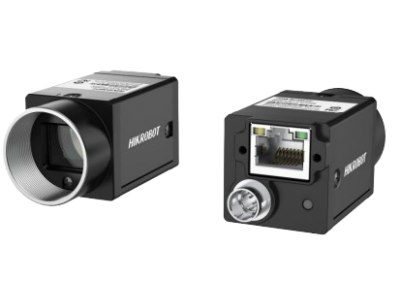

MV-CU060-60G

6 MP Area Scan Camera

HIKROBOT

  • Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.
  • Adopts GigE interface and max. transmission distance of 100 meters without relay, compact design to meet small spatial requirements.
  • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Details

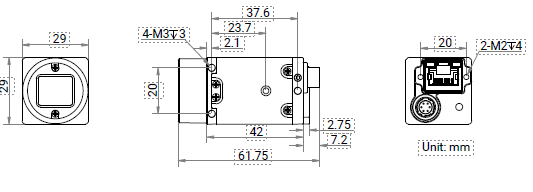

Dimension

Specifications

Type
CU Series
Resolution
6 MP
Frame Rate
19 fps
Data interface
Gigabit Ethernet
Fast Ethernet
Lens mount
C-Mount
Ingress Protection
IP40
Min Working Temperature
0 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Power supply
9 VDC - 24 VDC
PoE

Models

MV-CU060-60GC
Color
MV-CU060-60GM
Mono

Downloads

MV-CU060-60GM/GC Datasheet
Datasheet
