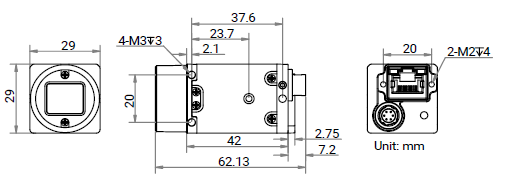

Dimension

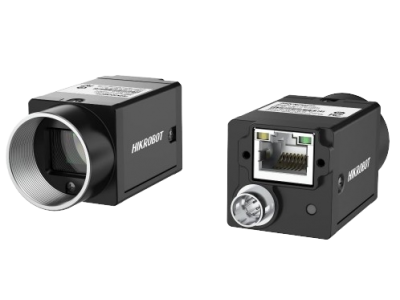

MV-CU020-19G
2 MP Area Scan Camera
HIKROBOT
- Adopts low consumption platform with stable performance.
- Supports wide dynamic range, noise reduction and sharpness functions.
- Customized filter with strong anti-interference ability is optional.
- Supports hardware trigger, software trigger, free run, etc.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Details
Specifications
Type
CU Series
Resolution
2 MP
Frame Rate
56 fps
Data interface
Gigabit Ethernet
Fast Ethernet
Fast Ethernet
Lens mount
C-Mount
Ingress Protection
IP30
Min Working Temperature
0 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Third-party software
Power supply
9 VDC - 24 VDC
PoE
PoE
Models
MV-CU020-19GC
Color
MV-CU020-19GC
Mono
850nm Bandpass
MV-CU020-19GM
Mono
Downloads
MV-CU020-19GM/GC Datasheet
