MV-CU016-10G

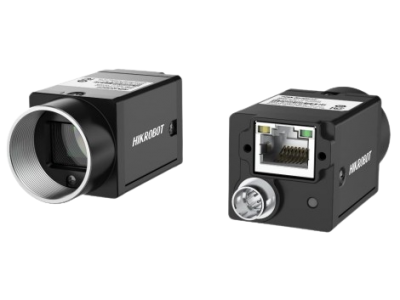

1.6 MP Area Scan Camera

HIKROBOT

  • Adopts low power consumption design with stable performance.
  • Supports auto and manual adjustment of gain, exposure time, etc.
  • Supports hardware trigger, software trigger, free run, etc.
  • Adopts GigE interface and max. transmission distance of 100 meters without relay.
  • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Details

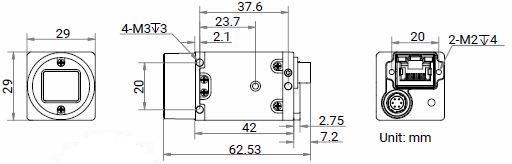

Dimension

Specifications

Type
CU Series
Resolution
1.6 MP
Frame Rate
65.8 fps
Data interface
Gigabit Ethernet
Fast Ethernet
Lens mount
C-Mount
Ingress Protection
IP30
Min Working Temperature
0 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Power supply
9 VDC - 24 VDC
PoE

Models

MV-CU016-10GC
Color
MV-CU016-10GM
Mono

Downloads

MV-CU016-10GM/GC Datasheet
Datasheet
