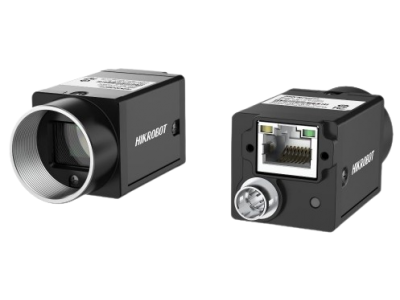

MV-CU013-80G

1.3 MP Area Scan Camera

HIKROBOT

  • Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, Gamma correction, etc.
  • Supports hardware trigger, software trigger, free run, etc.
  • Adopts GigE interface and max. transmission distance of 100 meters without relay.
  • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Details

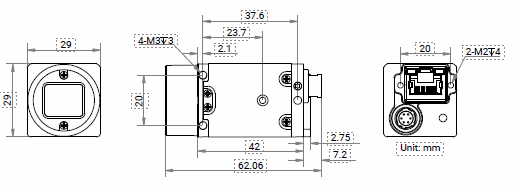

Dimension

Specifications

Type
CU Series
Resolution
1.3 MP
Frame Rate
89.9 fps
Data interface
Gigabit Ethernet
Fast Ethernet
Lens mount
C-Mount
Ingress Protection
IP30
Min Working Temperature
0 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Power supply
9 VDC - 24 VDC
PoE

Models

MV-CU013-80GC
Color
MV-CU013-80GM
Mono

Downloads

MV-CU013-80GM/GC Datasheet
Datasheet
