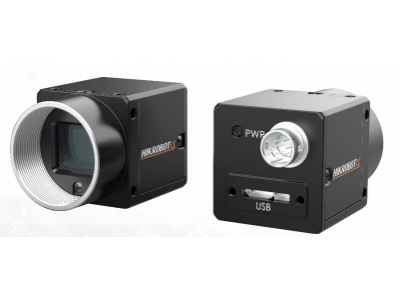

MV-CS028-10UM

2.8 MP USB3.0 Area Scan Camera

HIKROBOT

  • Adopts brand new design to reduce power consumption.
  • Supports auto or manual adjustment of gain, exposure time, LUT, Gamma correction, contrast ratio, etc.
  • Compact design with mounting holes on panels for flexible mounting from 4 sides.
  • Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.

Details

Dimension

Specifications

Type
CS Series
Resolution
2.8 MP
Frame Rate
132.2 fps
Data interface
USB3.0
USB2.0
Lens mount
C-Mount
Ingress Protection
IP40
Min Working Temperature
-30 °C
Max Working Temperature
60 °C
Client software
MVS
Third-party software
Power supply
9 VDC - 24 VDC
Certification
CE
KC
FCC
RoHS

Models

MV-CS028-10UM
Mono

Downloads

MV-CS028-10UM Datasheet
Datasheet
