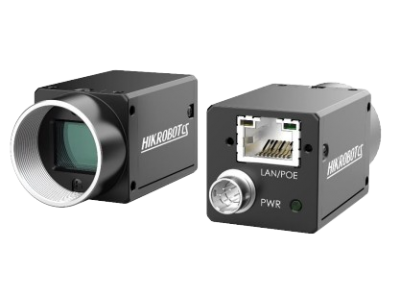

MV-CS016-11GM

1.6MP Area Scan Camera

HIKROBOT

  • Adopts brand new design to reduce power consumption.
  • Supports auto or manual adjustment for gain, exposure time, LUT, Gamma correction, white balance, etc.
  • Adopts GigE interface and max. transmission distance of 100 meters without delay.
  • Compact design with mounting holes on panels for flexible mounting from 4 sides.
  • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Details

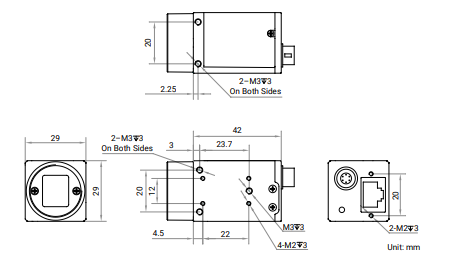

Dimension

Specifications

Type
CS Series
Resolution
1.6 MP
Frame Rate
78.2 fps
Data interface
Gigabit Ethernet
Fast Ethernet
Lens mount
C-Mount
Ingress Protection
IP40
Min Working Temperature
-30 °C
Max Working Temperature
60 °C
Client software
MVS
Third-party software
Power supply
9 VDC - 24 VDC
PoE

Models

MV-CS016-11GM
Mono

Downloads

MV-CS016-11GM Datasheet
Datasheet
