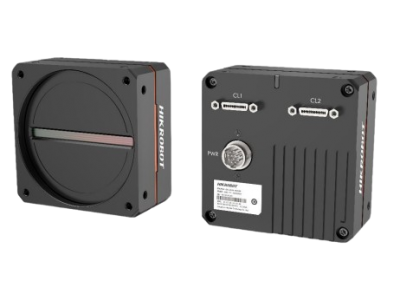

MV-CL162-91CM

Line Scan Camera

HIKROBOT

  • Adopts multiple ISP technologies and supports manual adjustment for Gamma correction, FFC correction, LUT, black level, etc.
  • Supports multiple exposure, image acquisition modes, TDI function and bi-directional I/O wiring for input/output settings.
  • Compact design and flexible installation.
  • Compatible with Camera Link V2.0 Protocol, GenlCam Standard.

Details

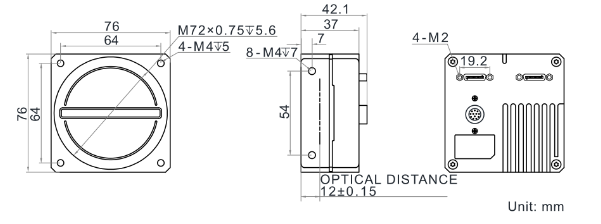

Dimension

Specifications

Resolution
16K
Data interface
Camera Link
Power supply
12 VDC - 24 VDC
Mono/Color
Mono
Lens mount
F-mount
M72 x 0.75
Ingress protection
IP 40
Min Working Temperature
-20 °C
Max Working Temperature
55 °C
Client software
MVS
Frame grabber

Models

MV-CL162-91CM
Mono

Downloads

MV-CL162-91CM
Datasheet
