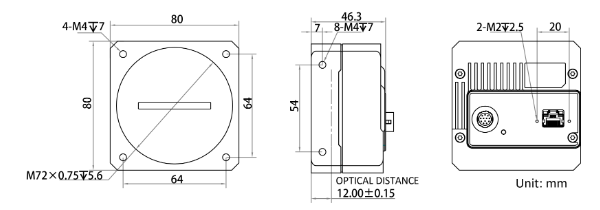

Dimension

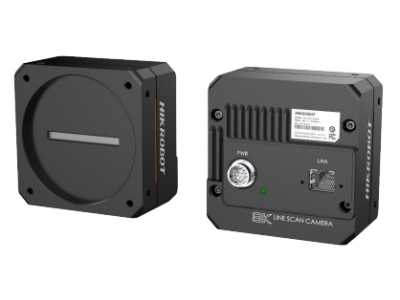

MV-CL086-91GC
Line Scan Camera
HIKROBOT
- Supports image compression mode, TDI, trigger-width exposure, RGB true color etc.
- Allows manual adjustment for Gamma correction, white balance, PRNUC correction, LUT, black level, space correction, etc.
- Adopts bi-directional I/O hardware design.
- Compact design and flexible installation.
- Compatible with GigE Vision V2.0 and GenlCam standard.
Details
Specifications
Resolution
8K
Data interface
Gigabit Ethernet
Fast Ethernet
Fast Ethernet
Power supply
12 VDC - 24 VDC
Mono/Color
Color
Lens mount
M72 x 0.75
Ingress protection
IP 40
Min Working Temperature
-20 °C
Max Working Temperature
55 °C
Client software
MVS
Third-party software
Third-party software
Certification
CE
KC
FCC
RoHS
KC
FCC
RoHS
Models
MV-CL086-91GC
Color
Downloads
MV-CL086-91GC
