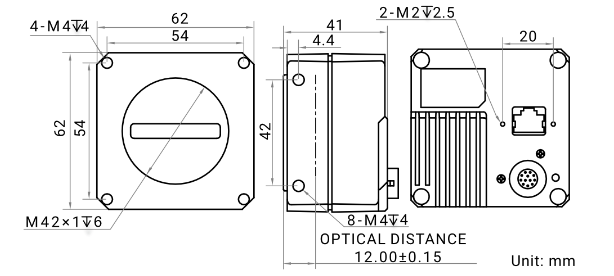

Dimension

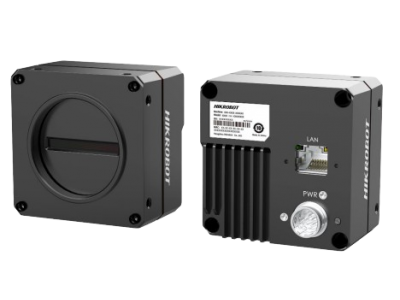

MV-CL042-91GM
Line Scan Camera
HIKROBOT
- Supports image high-bandwidth mode, TDI, trigger width exposure, etc.
- Allows manual adjustment for Gamma correction, PRNU correction, LUT, black level offset, etc.
- Adopts bi-directional I/O connection, flexible configuration for Input/Output.
- Compact design and flexible installation.
- Compatible with GigE Vision V2.0 and GenlCam standard.
Details
Specifications
Resolution
4K
Data interface
Gigabit Ethernet
Fast Ethernet
Fast Ethernet
Power supply
12 VDC - 24 VDC
PoE
PoE
Mono/Color
Mono
Lens mount
C-mount
F-mount
M42 x 1.0
F-mount
M42 x 1.0
Ingress protection
IP 40
Min Working Temperature
-20 °C
Max Working Temperature
55 °C
Client software
MVS
Third-party software
Third-party software
Models
MV-CL042-91GM
Mono
Downloads
MV-CL042-91GM
