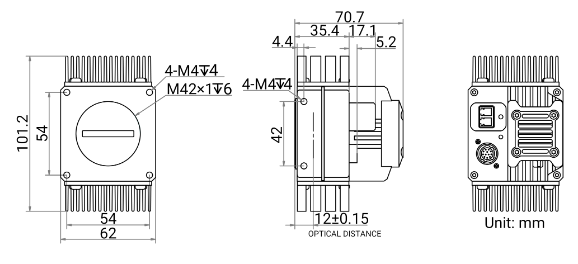

Dimension

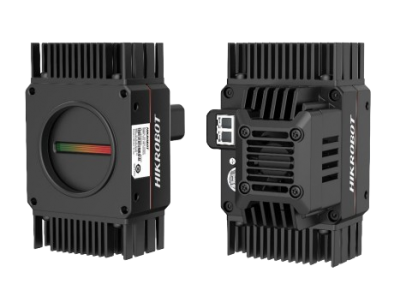

MV-CL042-91FC
Line Scan Camera
HIKROBOT
- Adopts multiple ISP like Gamma correction, flat field correction, LUT, black level offset, etc.
- Provides one XoF fiber port with 10 GB bandwidth.
- Supports multiple exposure and acquisition methods with max. line rate of 100 kHz.
- Features a bi-directional, configurable I/O hardware design.
- Compact design and flexible installation.
Details
Specifications
Resolution
4K
Data interface
2LC
Power supply
12 VDC - 24 VDC
Mono/Color
Color
Lens mount
F-mount
M42 x 1.0
M42 x 1.0
Ingress protection
IP 40
Min Working Temperature
-20 °C
Max Working Temperature
55 °C
Client software
MVS
Models
MV-CL042-91FC
Color
Downloads
MV-CL042-91FC
