Home > Products > Machine Vision > Infrared Camera > MV-CI013-GS-TF

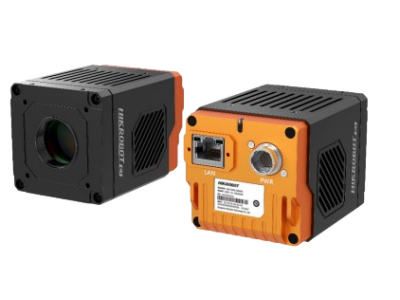

MV-CI013-GS-TF

1.3 MP Infrared Camera

HIKROBOT

  • Adopts InGaAs sensor, supports spectral imaging of 0.4 μm to 1.7 μm, compact structure and design to meet spatial requirements.
  • Supports TEC to provide good cooling effect.
  • Multiple ISP functions like digital noise reduction, contrast ratio, etc.
  • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Details

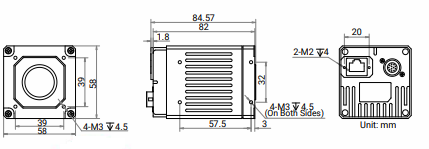

Dimension

Specifications

Resolution
1.3 MP
Frame Rate
91 fps
Data interface
Gigabit Ethernet
Fast Ethernet
Lens mount
C-mount
Ingress protection
IP40
Min Working Temperature
-30 °C
Max Working Temperature
50 °C
Client software
MVS
third-party software
Power supply
9 VDC to 24 VDC

Models

MV-CI013-GS-TF
Mono

Downloads

MV-CI013-GS-TF
Datasheet
