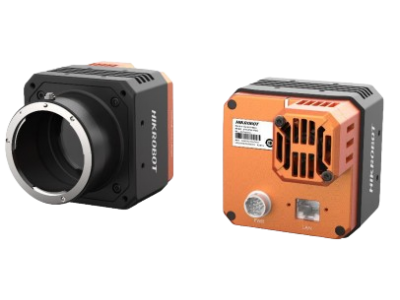

MV-CH650-90T

65 MP Area Scan Camera

HIKROBOT

  • Resolution of 9344 × 7000, and pixel size of 3.2 μm × 3.2 μm.
  • Adopts 10 GigE interface providing max. transmission distance of 100 meters without relay.
  • Supports auto or manual adjustment for gain, exposure time, and manual adjustment for Look-Up Table (LUT), Gamma correction, etc.
  • Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols.

Details

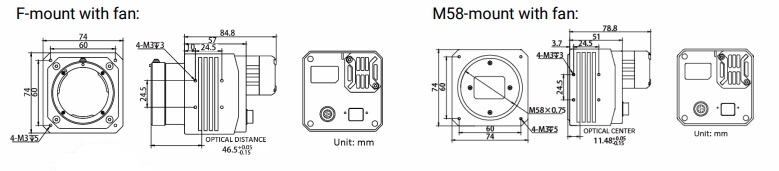

Dimension

Specifications

Type
CH Series
Resolution
65 MP
Frame Rate
17.2 fps
Data interface
Gigabit Ethernet
Lens mount
F-mount
M58-mount
Ingress Protection
IP40
Min Working Temperature
0 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Power supply
9 VDC - 24 VDC
Certification
CE
KC
FCC
RoHS

Models

MV-CH650-90TC-F-NF
Color
MV-CH650-90TCM58S-NF
Color
MV-CH650-90TM-F-NF
Mono
MV-CH650-90TMM58S-NF
Mono

Downloads

MV-CH650-90TM/TC
Datasheet
