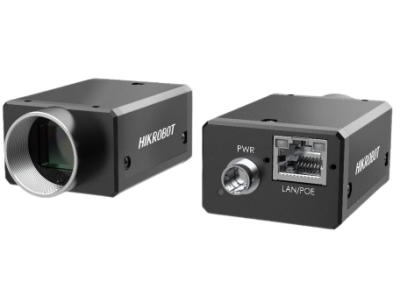

MV-CH250-90G

25 MP Area Scan Camera

HIKROBOT

  • Resolution of 5120 × 5120, pixel size of 2.5 µm × 2.5 µm.
  • Supports increasing frame rate via ROI, and supports binning, reverse image output and LSC.
  • Adopts GigE interface and max. transmission distance of 100 meters without relay.
  • Supports hardware trigger, software trigger, free run, etc.
  • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Details

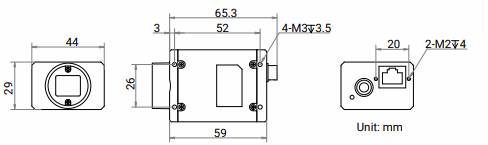

Dimension

Specifications

Type
CH Series
Resolution
25 MP
Frame Rate
4.5 fps
Data interface
Gigabit Ethernet
Fast Ethernet
Lens mount
C-Mount
Ingress Protection
IP40
Min Working Temperature
0 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Power supply
9 VDC - 24 VDC
PoE

Models

MV-CH250-90GC
Color
MV-CH250-90GM
Mono
MV-CH250-90GN
NIR

Downloads

MV-CH250-90GM/GC/GN
Datasheet
