MV-CH250-21G

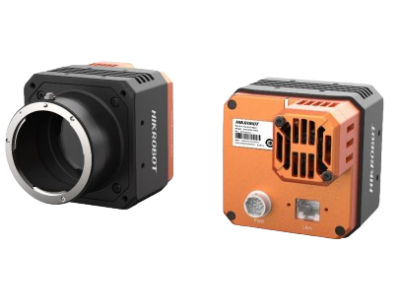

25 MP Area Scan Camera

HIKROBOT

  • Resolution of 5120 × 5120 and pixel size of 4.5 μm × 4.5 μm.
  • Adopts GigE interface providing max. transmission distance of 100 meters without relay, local memory for burst transmission and retransmission.
  • Compact design with mounting holes on the up and bottom panels for flexible mounting.
  • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.

Details

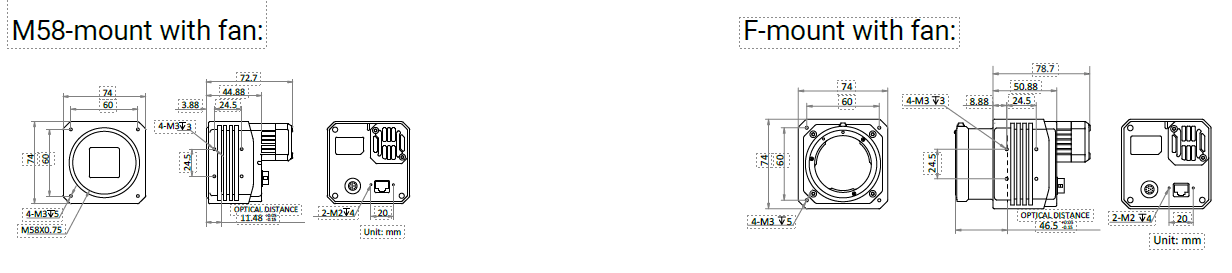

Dimension

Specifications

Type
CH Series
Resolution
25 MP
Frame Rate
4.64 fps
Data interface
Gigabit Ethernet
Fast Ethernet
Lens mount
F-mount
M58-mount
optical focal
Ingress Protection
IP40
Min Working Temperature
0 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Power supply
12 VDC

Models

MV-CH250- 21GC-F-NF
Color
MV-CH250- 21GM-F-NF
Mono
MVCH250- 21GC-M58S-NF
Color
MVCH250- 21GM-M58S-NF
Mono

Downloads

MV-CH250-21GM/GC
Datasheet
