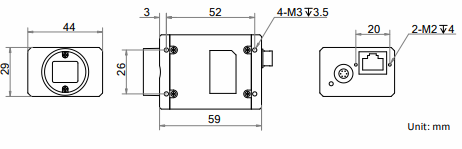

Dimension

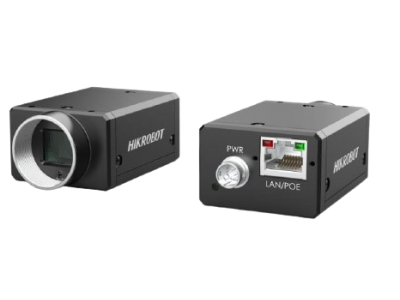

MV-CH160-60GM
16 MP Area Scan Camera
HIKROBOT
- Resolution of 4000 × 4000, pixel size of 3.2 µm × 3.2 µm.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Supports hardware trigger, software trigger, and free run.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Details
Specifications
Type
CH Series
Resolution
16 MP
Frame Rate
7.25 fps
Data interface
Gigabit Ethernet
Fast Ethernet
Fast Ethernet
Lens mount
C-Mount
Ingress Protection
IP30
Min Working Temperature
0 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Third-party software
Power supply
9 VDC to 26 VDC
PoE
PoE
Models
V-CH160-60GM
Mono
Downloads
MV-CH160-60GM
