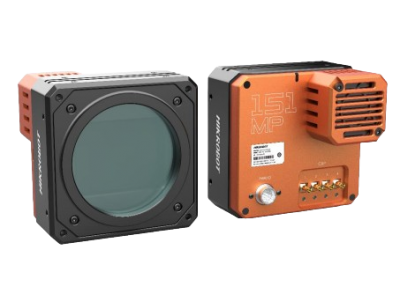

MV-CH1510-10(11)X

151 MP Area Scan Camera

HIKROBOT

  • Resolution of 14208 × 10640, pixel size of 3.76 µm × 3.76 µm.
  • Adopts rolling shutter CMOS to provide high dynamic range, SNR, and high-quality images.
  • Adopts CXP-6 interface to transmit data.
  • Supports the flat field correction.
  • Compatible with CoaXPress Protocol, GenlCam Standard, third-party software based on the protocol and standard.

Details

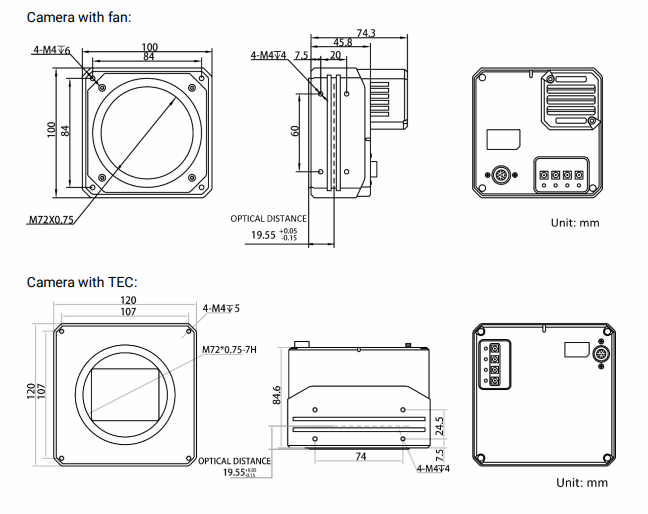

Dimension

Specifications

Type
CH Series
Resolution
151 MP
Frame Rate
6.2 fps
Data interface
CoaXPress
Lens mount
M72 x 0.75
optical focal
Ingress Protection
IP40
Min Working Temperature
0 °C
Max Working Temperature
50 °C
Client software
frame grabber
Power supply
12 VDC to 24 VDC
24 VDC
Certification
CE
KC
FCC
RoHS

Models

MV-CH1510-10(11)XC
Color
MV-CH1510-10(11)XM
Mono
MVCH1510- 10XC-M72-NF
Color
MVCH1510- 10XM-M72-NF
Mono
MVCH1510- 11XC-M72-TF
Color
MVCH1510- 11XM-M72-TF
Mono

Downloads

MV-CH1510-10(11)XM/XC
Datasheet
