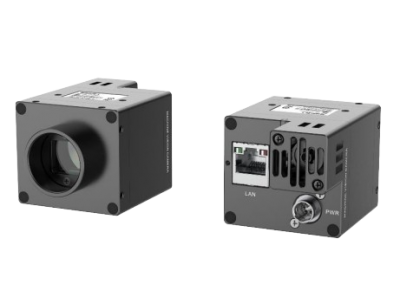

MV-CH120-90TM

12 MP Area Scan Camera

HIKROBOT

  • Resolution of 4096 × 3000, pixel size of 3.4 µm × 3.4 µm.
  • Compatible with C-mount lens, GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols.
  • Supports a maximum transmission distance of 100 meters.
  • Provides mounting holes on panels for flexible installation.

Details

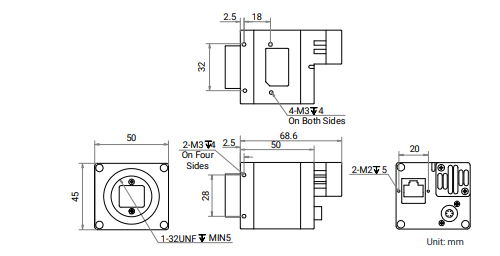

Dimension

Specifications

Type
CH Series
Resolution
12 MP
Frame Rate
65 fps
Data interface
Gigabit Ethernet
Lens mount
C-Mount
Ingress Protection
IP40
Min Working Temperature
0 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Power supply
9 VDC - 24 VDC

Models

MV-CH120-90TM
Mono

Downloads

MV-CH120-90TM
Datasheet
