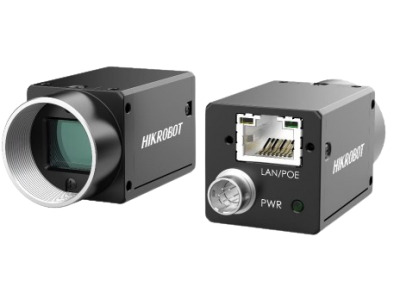

MV-CH120-60G

12 MP Area Scan Camera

HIKROBOT

  • Compact design with mounting holes on panels for flexible mounting from 4 sides.
  • Supports auto or manual adjustment of gain and exposure time, and LUT and Gamma correction function, LSC, Sequencer, passive transmission, etc.
  • Supports functions like white balance, CCM, Super Palette, and Super Bayer to provide high-quality images.
  • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Details

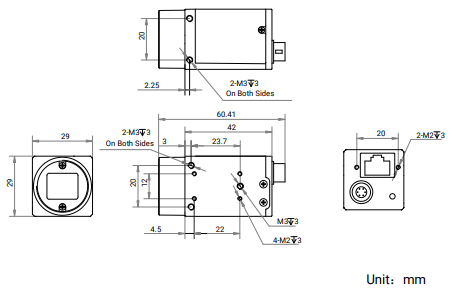

Dimension

Specifications

Type
CH Series
Resolution
12 MP
Frame Rate
9.5 fps
Data interface
Gigabit Ethernet
Fast Ethernet
Lens mount
C-Mount
Ingress Protection
IP40
Min Working Temperature
-10 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Power supply
9 VDC - 24 VDC
PoE

Models

MV-CH120-60GC
Color
MV-CH120-60GM
Mono
