MV-CH120-20G

12 MP Area Scan Camera

HIKROBOT

  • Supports auto or manual adjustment for gain and exposure time, manual adjustment for LUT and Gamma correction, LSC, sequencer, passive transmission, etc.
  • Color camera supports white balance, CCM, Super Palette, Super Bayer, etc.
  • Adopts GigE interface and max. transmission distance of 100 meters without relay.
  • Compact design with mounting holes on panels for flexible mounting from 4 sides.
  • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Details

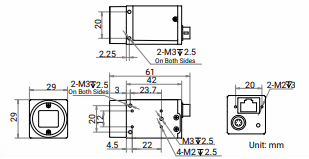

Dimension

Specifications

Type
CH Series
Resolution
12 MP
Frame Rate
9.6 fps
Data interface
Gigabit Ethernet
Fast Ethernet
Lens mount
C-Mount
Ingress Protection
IP40
Min Working Temperature
-10 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Power supply
9 VDC - 24 VDC
PoE
Certification
CE
KC
FCC
RoHS

Models

MV-CH120-20GC
Color
MV-CH120-20GM
Mono

Downloads

MV-CH120-20GM/GC
Datasheet
