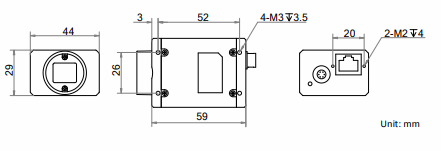

Dimension

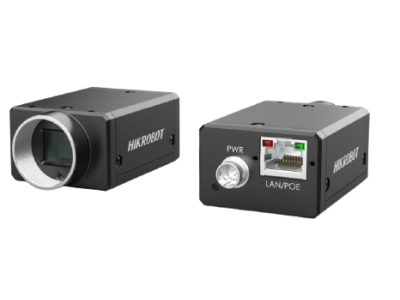

MV-CH120-10G (EoL)
12 MP Area Scan Camera
HIKROBOT
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Support auto exposure control, LUT, Gamma correction, hardware trigger, software trigger, etc.
- Compatible with GigE Vision Protocol V2.0,GenlCam Standard, and third-party software based on these protocol and standard.
Details
Specifications
Type
CH Series
Resolution
12 MP
Frame Rate
9.4 fps
Data interface
Gigabit Ethernet
Fast Ethernet
Fast Ethernet
Lens mount
C-Mount
Ingress Protection
IP30
Min Working Temperature
0 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Third-party software
Power supply
12 VDC
PoE
PoE
Models
MV-CH120-10GC
Color
MV-CH120-10GM
Mono
Downloads
MV-CH120-10G Datasheet
