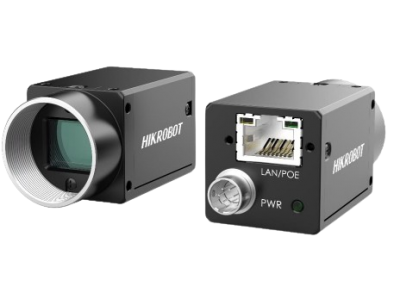

MV-CH120-10G

12 MP Area Scan Camera

HIKROBOT

  • Supports LSC, Sequencer, passive transmission, Super Bayer, Super Palette, hardware trigger, software trigger, free run, etc.
  • Compact design with mounting holes on panels for flexible mounting from 4 sides.
  • Adopts GigE interface and max. transmission distance of 100 meters without relay.
  • Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on these protocol and standard.

Details

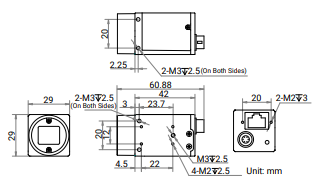

Dimension

Specifications

Type
CH Series
Resolution
12 MP
Frame Rate
9.9 fps
Data interface
Gigabit Ethernet
Fast Ethernet
Lens mount
C-Mount
Ingress Protection
IP40
Min Working Temperature
-10 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Power supply
9 VDC - 24 VDC
PoE
Certification
CE
KC
FCC
RoHS

Models

MV-CH120-10GC
Color
MV-CH120-10GM
Mono

Downloads

MV-CH120-10GM/GC Datasheet
Datasheet
