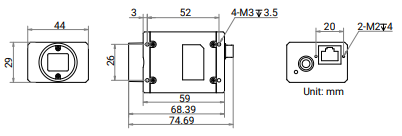

Dimension

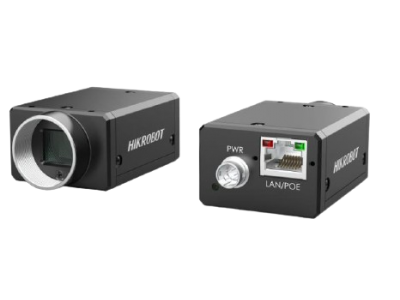

MV-CH100-60G
10 MP Area Scan Camera
HIKROBOT
- Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Details
Specifications
Type
CH Series
Resolution
10 MP
Frame Rate
11.6 fps
Data interface
Gigabit Ethernet
Fast Ethernet
Fast Ethernet
Lens mount
C-Mount
Ingress Protection
IP40
Min Working Temperature
-10 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Third-party software
Power supply
9 VDC - 24 VDC
PoE
PoE
Models
MV-CH100-60GC
Color
MV-CH100-60GM
Mono
Downloads
MV-CH100-60GM/GC Datasheet
