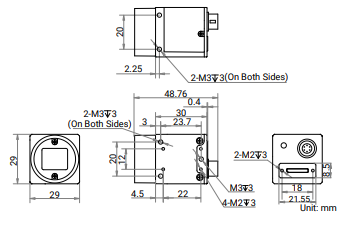

Dimension

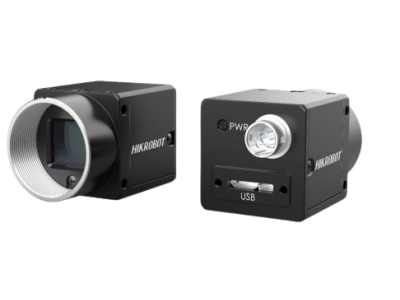

MV-CH050-60U
5 MP Area Scan Camera
HIKROBOT
- Supports Sequencer, Super Palette, and Super Bayer for enhanced image quality.
- Offers auto and manual adjustments for gain, exposure time, white balance, LUT, Gamma correction, etc.
- Supports hard trigger, software trigger, and free run modes.
- Allows customized ROI and horizontal/vertical reverse image output.
- Compatible with USB3 Vision Protocol, GenICam Standard, and third-party software based on these standards.
Details
Specifications
Type
CH Series
Resolution
5 MP
Frame Rate
79 fps
Data interface
USB3.0
USB2.0
USB2.0
Lens mount
C-Mount
Ingress Protection
IP40
Min Working Temperature
-10 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Third-party software
Power supply
9 VDC - 24 VDC
USB3.0
USB3.0
Models
MV-CH050-60UC
Color
MV-CH050-60UM
Mono
Downloads
MV-CH050-60UM/UC Datasheet
